Problem Statement
Problem Statement
People could suffer minor injuries during outdoor activities, such as cuts, bleeding, and scrapes. These outdoor injuries often worsen if not treated promptly, leading to secondary infections and increased external irritation.
People could suffer minor injuries during outdoor activities, such as cuts, bleeding, and scrapes. These outdoor injuries often worsen if not treated promptly, leading to secondary infections and increased external irritation.

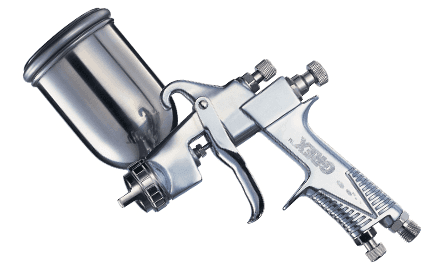

Inspired by spray guns and spray-on dressings, this device is designed for large, wide wounds sustained outdoors.
It immediately disinfects the injury while (or: and) simultaneously applying a medicated artificial membrane to seal the area and prevent secondary infection.
Inspired by spray guns and spray-on dressings, this device is designed for large, wide wounds sustained outdoors.
It immediately disinfects the injury while (or: and) simultaneously applying a medicated artificial membrane to seal the area and prevent secondary infection.
Of the pedestrian accidents reported in the United States between 2004 and 2011, 116 were directly related to wearing earphones, and 70% of those resulted in fatalities. (University of Maryland, 2012)
Background Research
Background Research
Outdoor Injuries
"78% of people have experienced injuries while engaging in outdoor activities."
Outdoor Injuries
"78% of people have experienced injuries while engaging in outdoor activities."
Outdoor Injuries
"78% of people have experienced injuries while engaging in outdoor activities."
Lack of access to treatment
"46% of people are unable to receive treatment due to a lack of access to suitable methods."
Lack of access to treatment
"46% of people are unable to receive treatment due to a lack of access to suitable methods."
Lack of access to treatment
"46% of people are unable to receive treatment due to a lack of access to suitable methods."
Important of Early Treatment
"82% of people believe that immediate access to first aid supplies for recovery is necessary right after an injury."
Important of Early Treatment
"82% of people believe that immediate access to first aid supplies for recovery is necessary right after an injury."
Important of Early Treatment
"82% of people believe that immediate access to first aid supplies for recovery is necessary right after an injury."
Outdoor Injuries
Lack of access to treatment
Important of Early Treatment
Design Concept
Design Concept
Design Concept

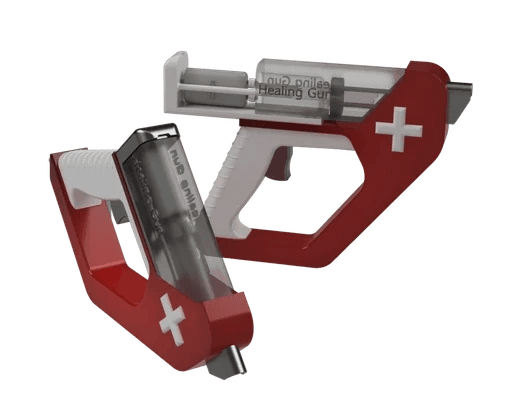

The 'Healing Gun' operates by spraying disinfectant liquid. The spray gun offers two different medical treatments: disinfecting a wound with alcohol and applying a fabric bandage.
This design solution allows users to prevent infection and secondary irritation.
The 'Healing Gun' operates by spraying disinfectant liquid. The spray gun offers two different medical treatments: disinfecting a wound with alcohol and applying a fabric bandage.
This design solution allows users to prevent infection and secondary irritation.

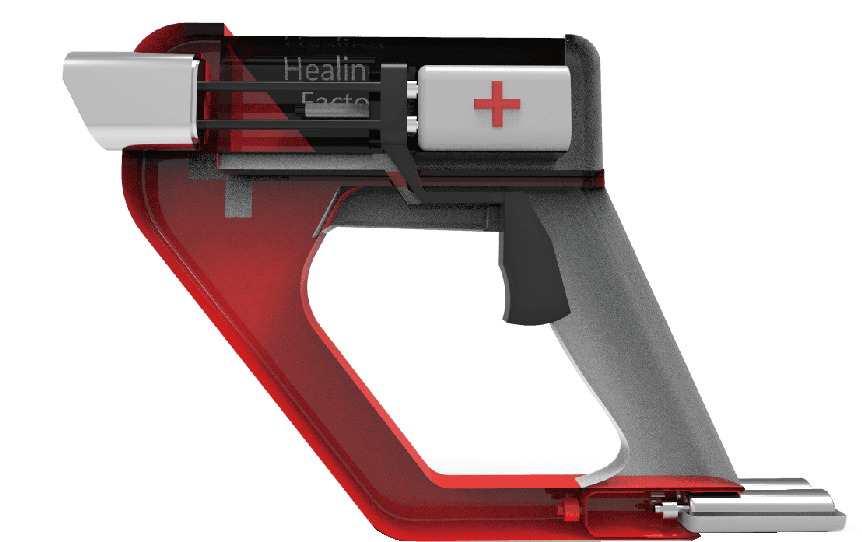

3D Modeling
Drag object to move
3D Modeling
Drag object to move

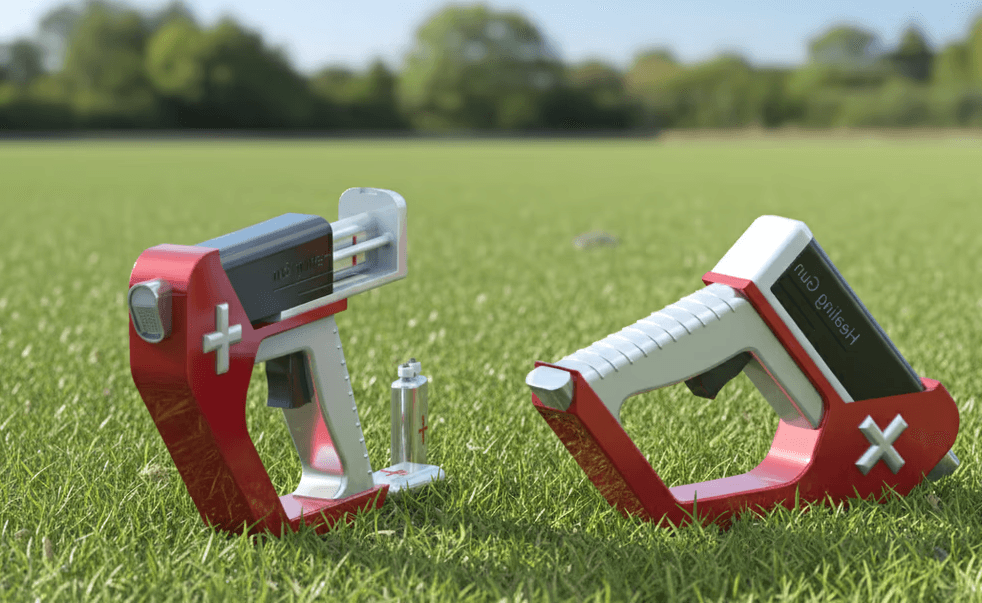

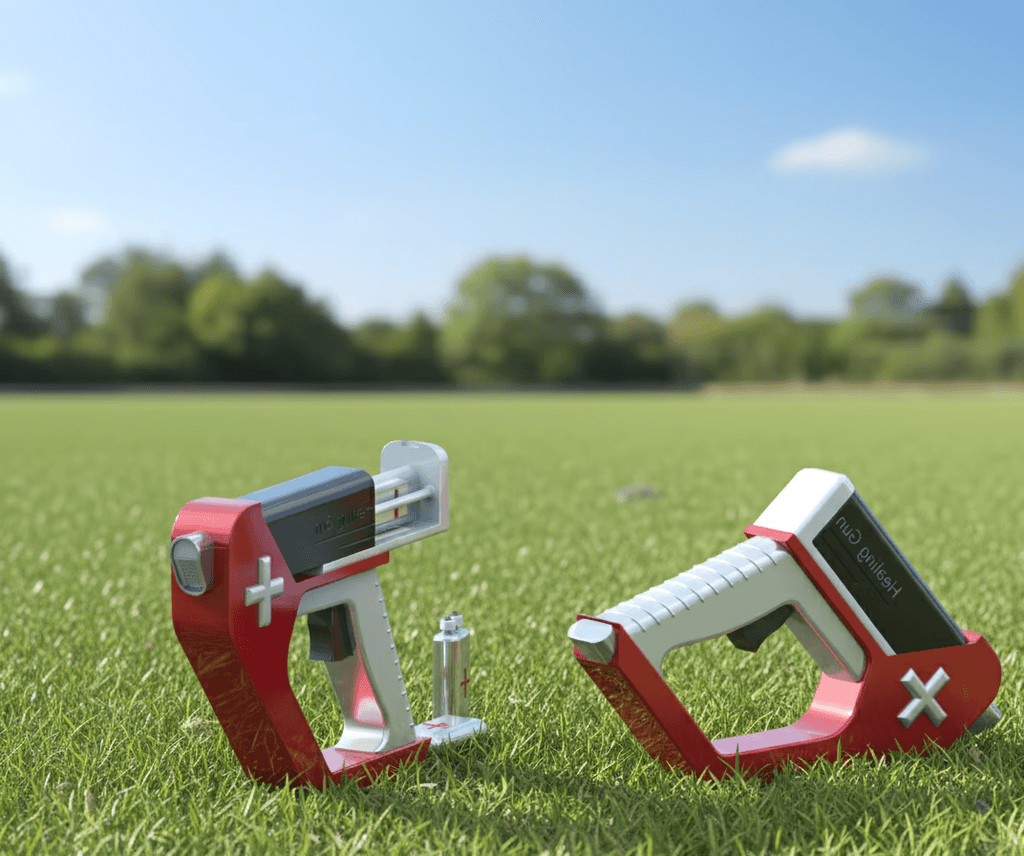

Rendering
Rendering

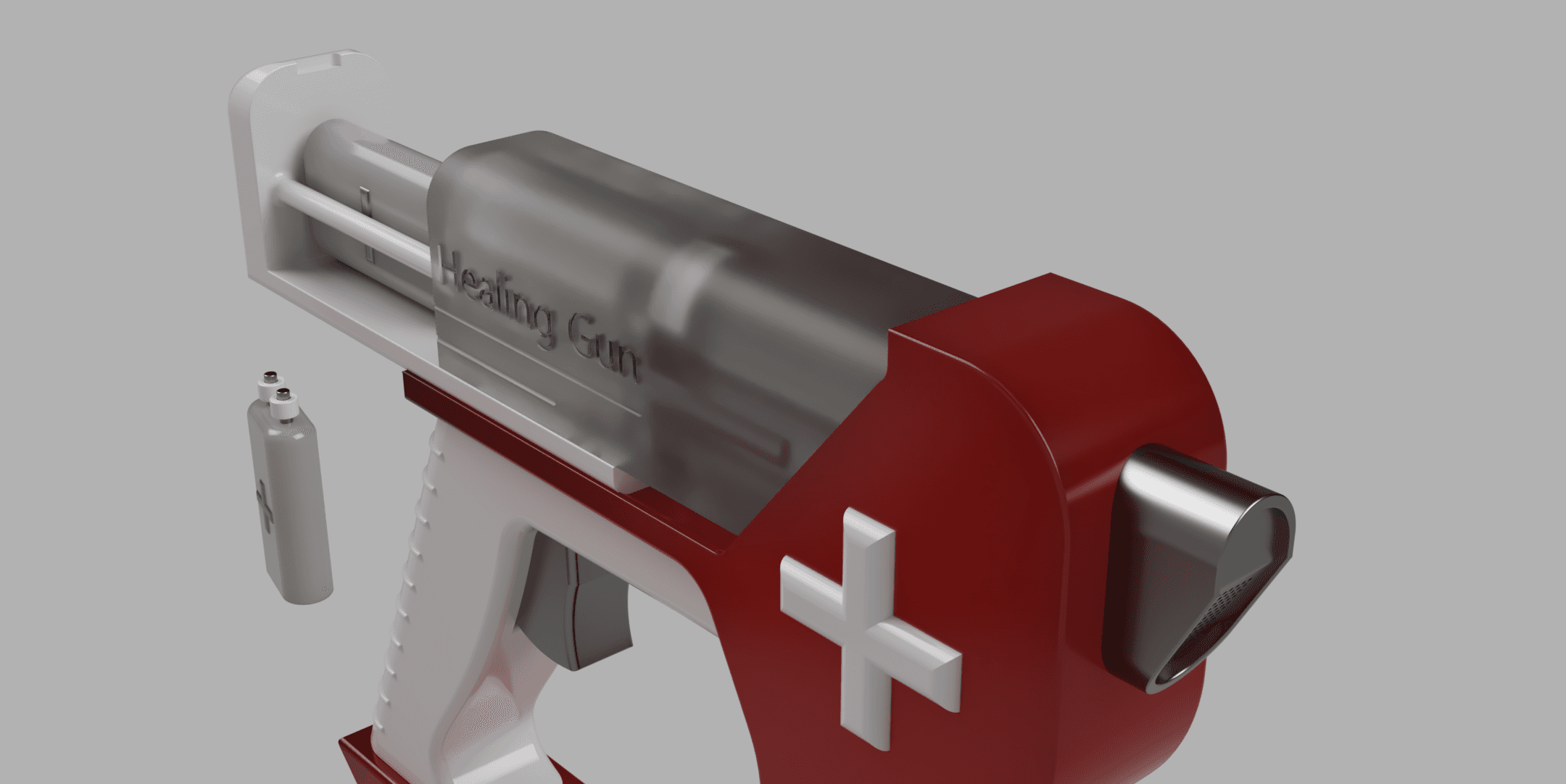

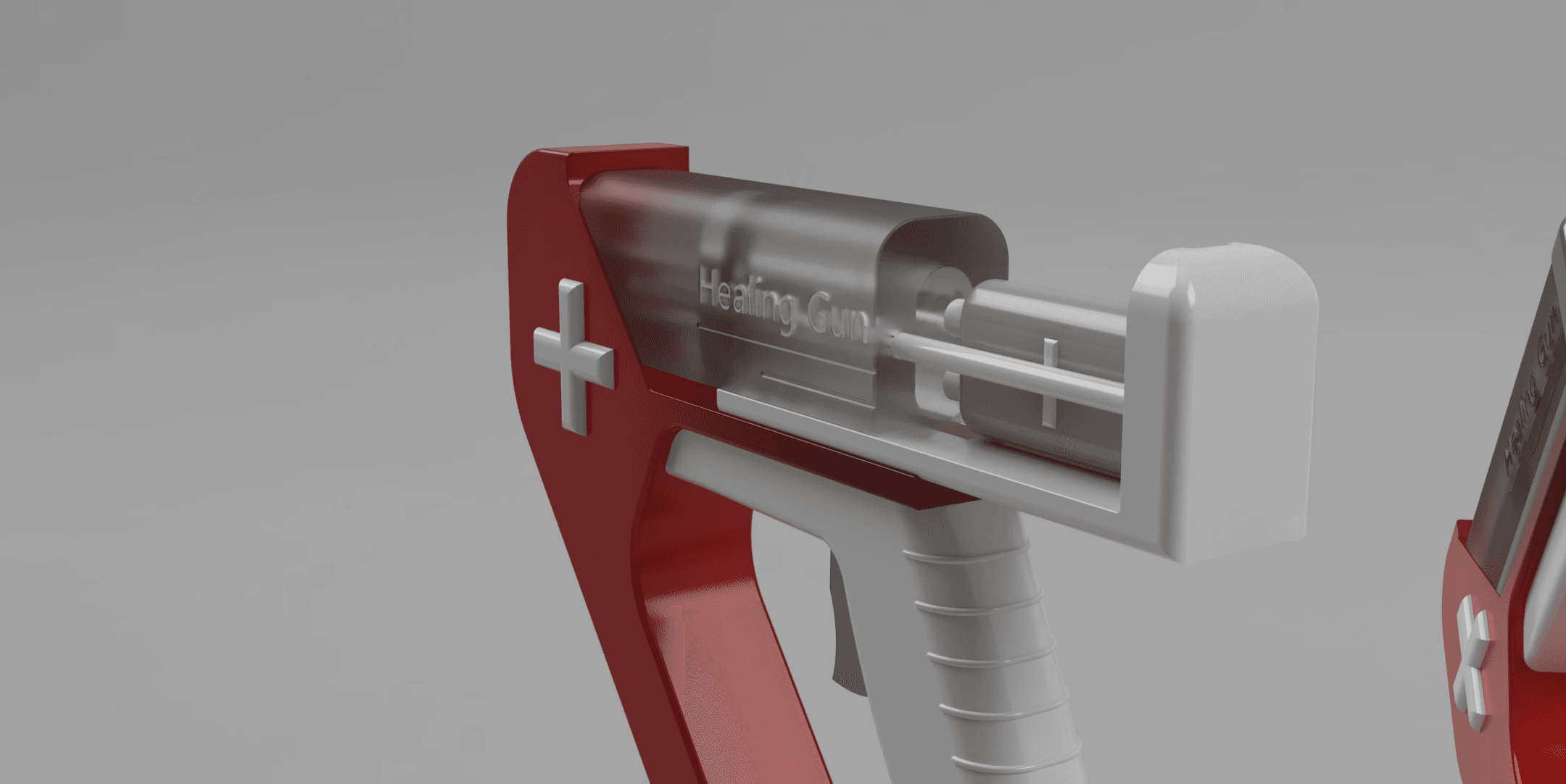

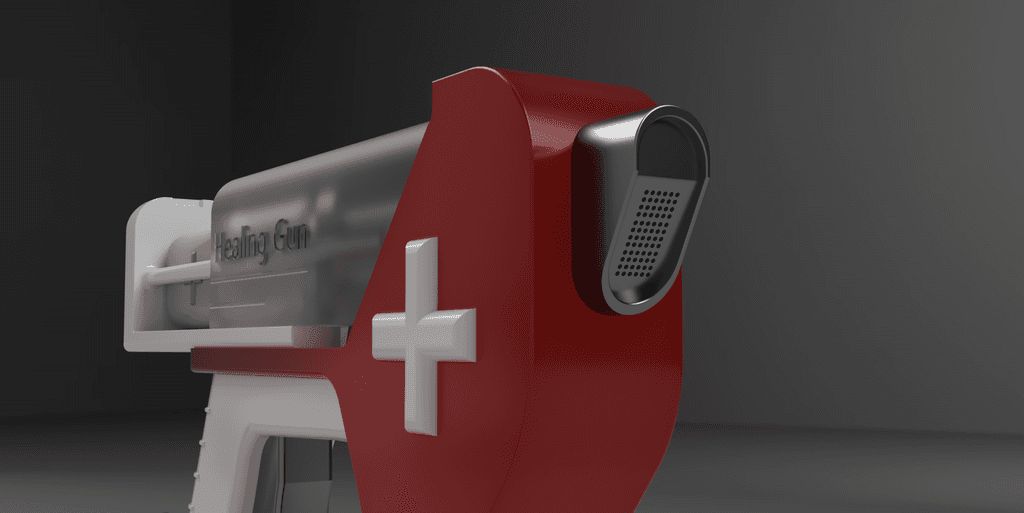

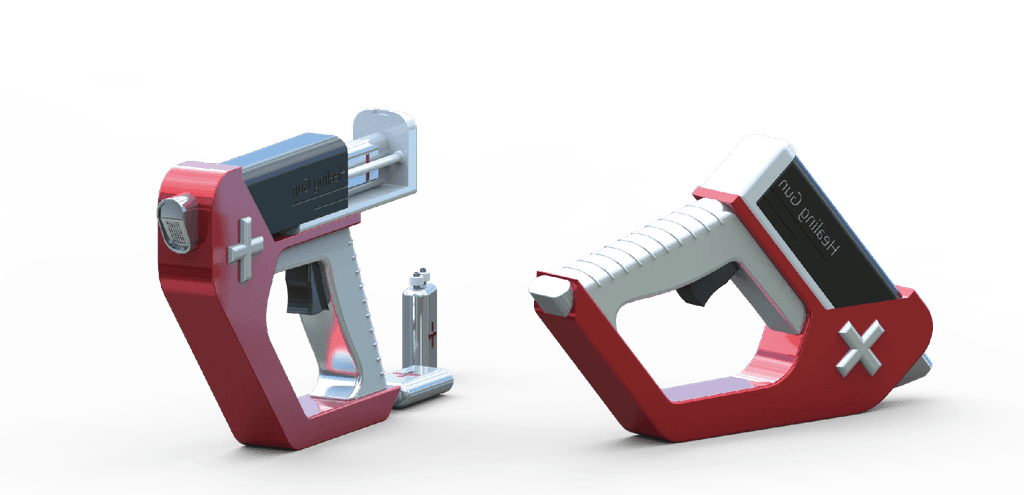

Detailed rendering showcases
Detailed rendering showcases

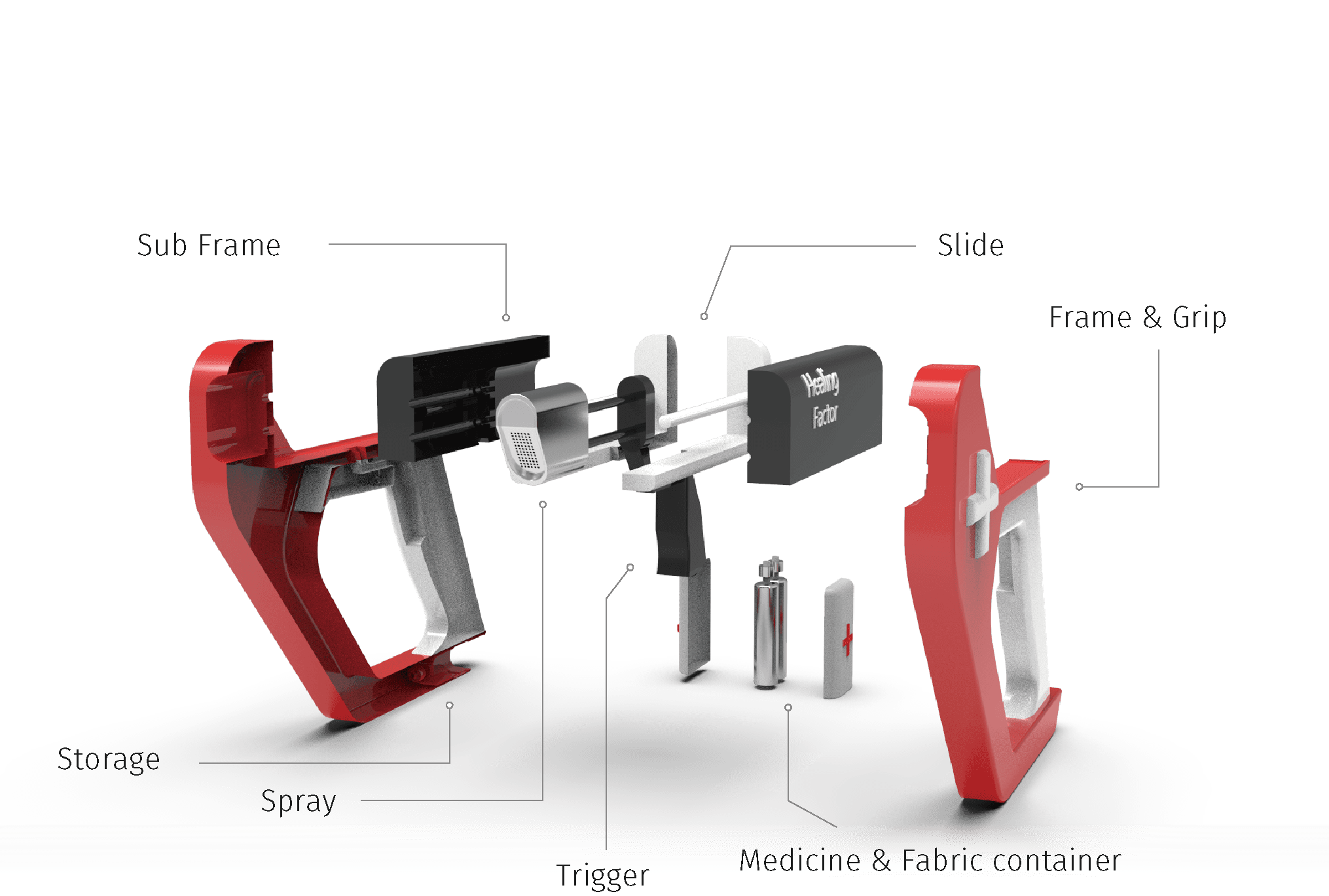

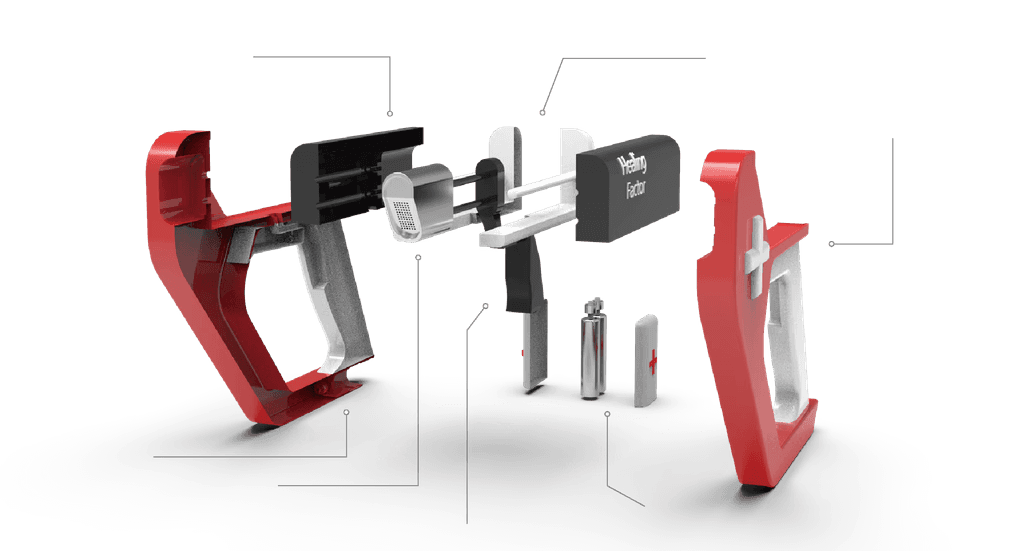

Components
Components
Sub Frame
Sub Frame
Frame & Grip
Slide
Container
Trigger
Spray
Storage
Trigger
Container
Frame & Grip
Slide
Spray
Storage
Slide
Frame & Grip
Container
Trigger
Spray
Storage
Usage
Usage
Put the medicine container on the slide and Close.
Put the medicine container on the slide and Close.

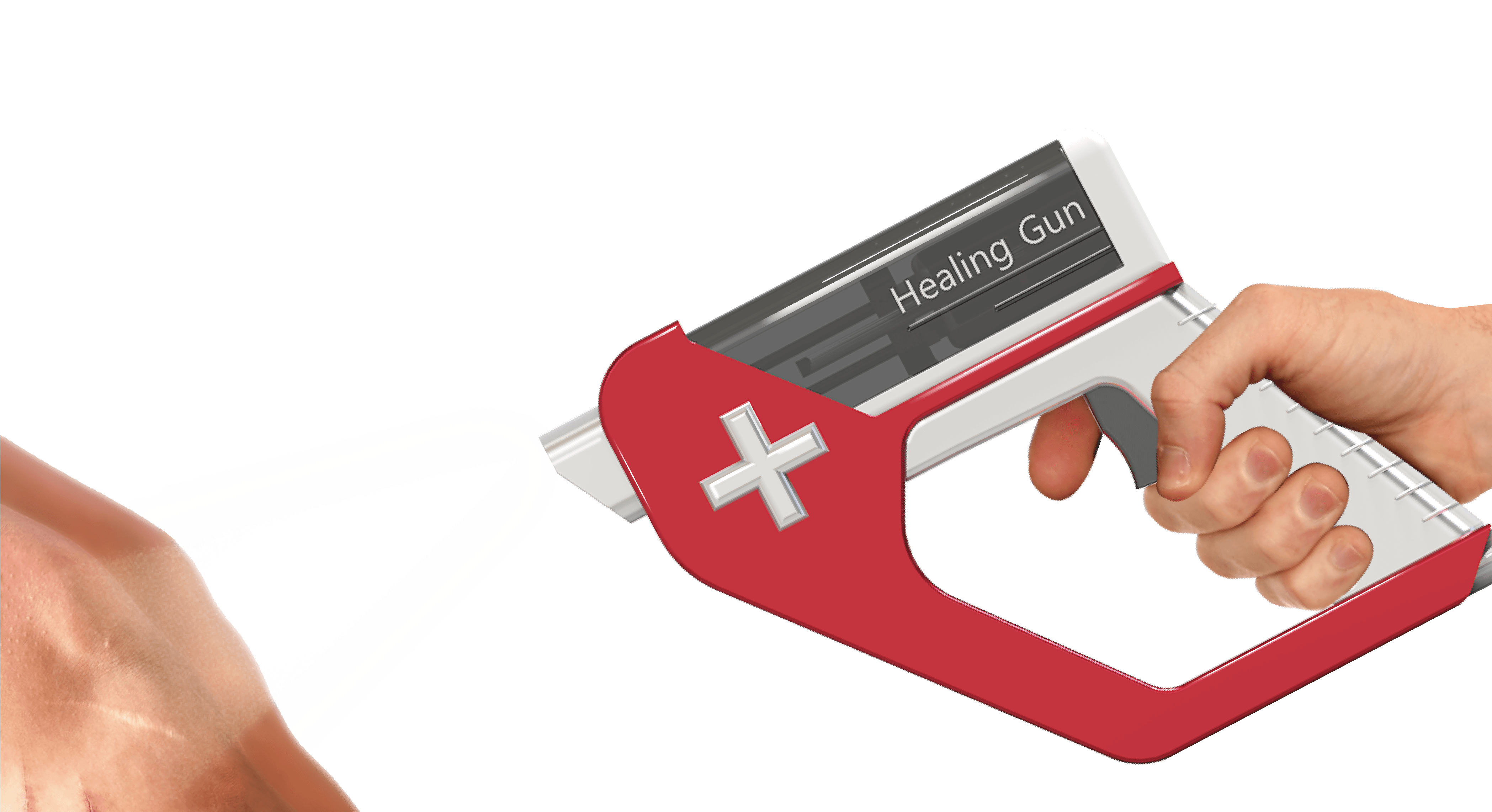

Press the trigger in the direction of the wound to spray the medicine.
Press the trigger in the direction of the wound to spray the medicine.
Sprayed medicine produces membranes to prevent irritation and infection and stop bleeding.
Sprayed medicine produces membranes to prevent irritation and infection and stop bleeding.
